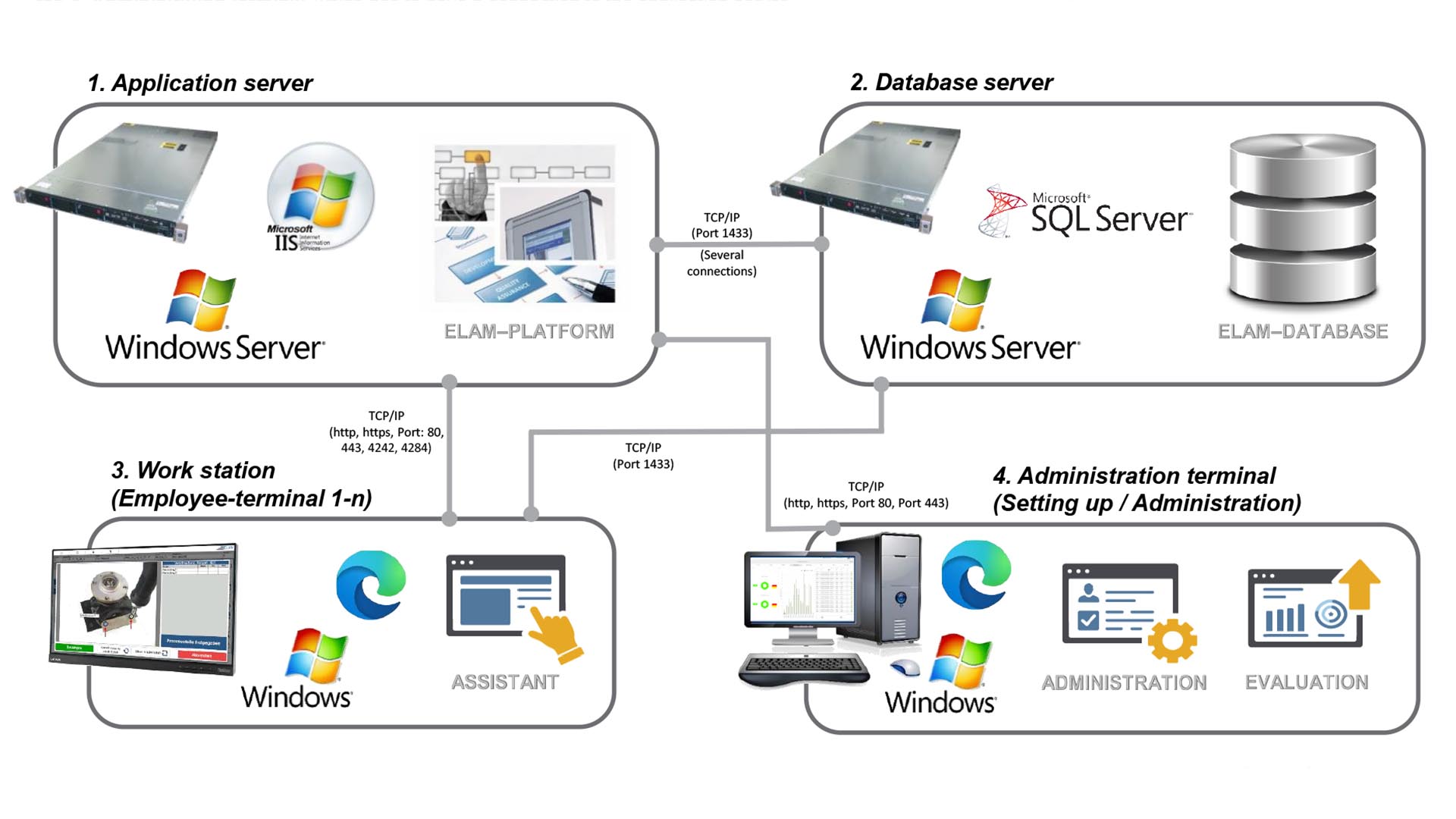

In order to integrate the ELAM software into your IT architecture, the customer requires an application server. The services of the ELAM system and the Internet Information Server to provide the ELAM evaluation run on this first application server. The application server accesses the second database server with its SQL database. The displays on the 3rd station master (employee terminal) are displayed via a browser in the ELAM assistant. Stored data is also accessed via the browser via the ELAM evaluation. The ELAM administration is used to set up the system and must be able to access the application server from the 4th operating computer.

‍

‍
