STAMA-NR.
3581

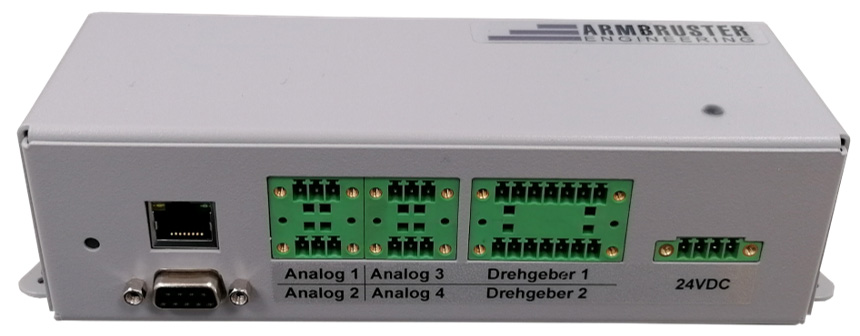

ELAM sensor box

Intelligent data interface for assembly, quality assurance and process monitoring

Description

The Sensorbox is a compact, industrial interface for the precise acquisition and transmission of process data. Featuring multiple analog inputs, SSI/Gray Code interfaces, and Ethernet connectivity, it enables the reliable integration of sensors into ELAM worker guidance systems. It's ideal for quality assurance, position monitoring, and process data acquisition during assembly.
REQUEST

datenblatt

Technical details

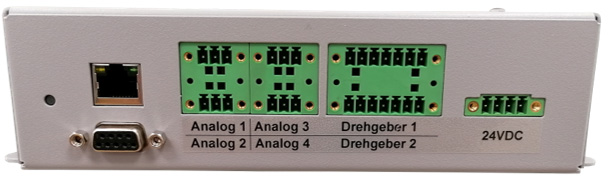

Interfaces
  • 4× analog inputs (0–10 V)
  • 2× SSI/Gray code interfaces
  • 1× Ethernet
  • programming and power connection
Processor
  • STM32 (ARM Cortex-M architecture)
Supply
  • Input: 24 V DC

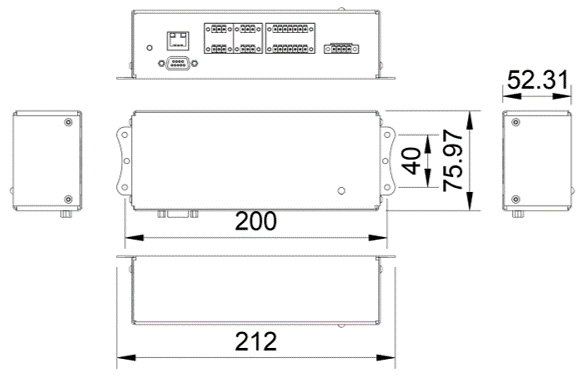

Dimensions & Weight
  • 212 x 76 x 53 mm (without plug)
  • 500 g

Information

Typical applications
  • Electronic workstations with worker guidance
  • Quality assurance in assembly
  • Position monitoring in production cells
  • Real-time process data acquisition
Accessories & Spare Parts
  • Control board (item no. 5552)
  • Power supply (item no. 5554)
  • Connector set (item no. 5557)
  • Housing (item no. 5553)
